Fixed, /Free and Fully Free RPG


RGZPFM - Reorganize physical file member in AS400

Reorganize physical file member in AS400 - RGZPFM
RGZPFM, Reorganize physical file member in AS400,ibmi,iseries,systemi,RGZPFM command in AS400,Reorganize physical file member,reuse the deleted rrn concept in as400,my easy classes
RGZPFM - Reorganize physical file members in AS400

Introduction

RGZPFM is a CL command used to remove deleted records from a table (DDS physical file).

Example

Just take a simple example to understand the scenario about when to use this RGZPFM command to reorganize physical file members.

We have a DDS PF named PF20 in library EASYCLASS1 having the below fields and records. Just select the records using the below SQL query and we will see below table record for RRN 1 till 4 present in the file.

SELECT rrn(a),a.* FROM PF20 a

PF20 file records

RRN IDN NAME ADDR1 ADDR2
1 4 NAME4 ADDRESS4 PART2
2 4 NAME4 ADDRESS4 PART2
3 4 NAME4 ADDRESS4 PART2
4 4 NAME4 ADDRESS4 PART2

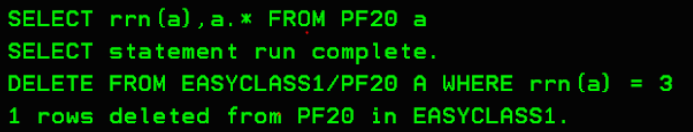

let's delete the record for RRN 3 from file PF20 in library EASYCLASS1
DELETE FROM EASYCLASS1/PF20 A WHERE rrn(a) = 3

RGZPFM, Reorganize physical file member in AS400

Record with RRN 3 has been deleted from the file and we are left with RRN 1,2 and 4

RRN IDN NAME ADDR1 ADDR2
1 4 NAME4 ADDRESS4 PART2
2 4 NAME4 ADDRESS4 PART2
3 4 NAME4 ADDRESS4 PART2
4 4 NAME4 ADDRESS4 PART2

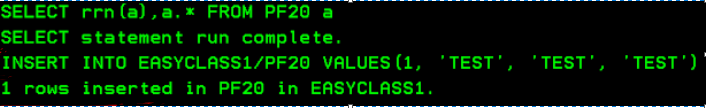

Let's insert the new record in file PF20 in library EASYCLASS1

INSERT INTO EASYCLASS1/PF20 VALUES(1, 'TEST', 'TEST', 'TEST')

A new record gets inserted with RRN 5

RGZPFM, as400,ibmi, iseries,systemi

Let's select the records from file PF20 in library EASYCLASS1

SELECT rrn(a),a.* FROM PF20 a

Record with RRN 5 has been inserted into the file

RRN IDN NAME ADDR1 ADDR2
1 4 NAME4 ADDRESS4 PART2
2 4 NAME4 ADDRESS4 PART2
3 4 NAME4 ADDRESS4 PART2
4 4 NAME4 ADDRESS4 PART2
5 1 TEST TEST TEST

We can observe that RRN 3 was freed once that record gets deleted. However, that storage space is still not in use since the next inserted RRN was 5. So, once we perform RGZPFM then only we will be able to reuse that RRN 3 or reuse that freed space.

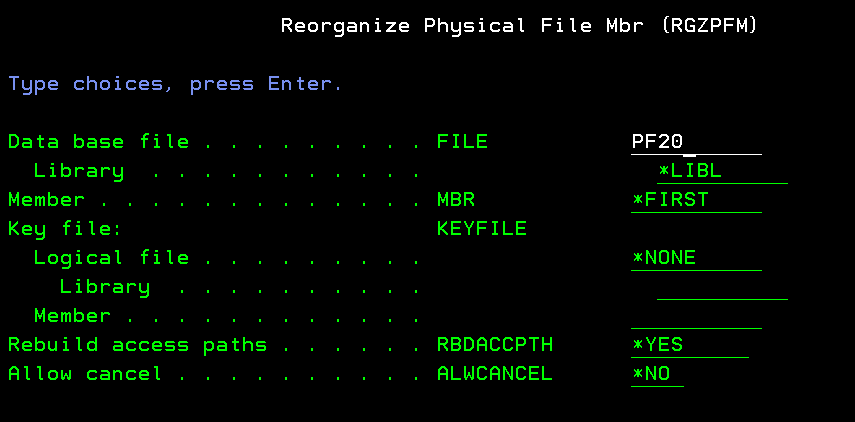

RGZPFM syntax

RGZPFM

once pressing the ENTER the command gets executed and Data in member PF20 is reorganized.

RGZPFM

The RRNs of the table PF20 are reorganized successfully

RRN IDN NAME ADDR1 ADDR2
1 4 NAME4 ADDRESS4 PART2
2 4 NAME4 ADDRESS4 PART2
3 4 NAME4 ADDRESS4 PART2
4 1 TEST TEST TEST

RGZPFM important parameters

RGZPFM command has many parameters out of which let's point out some important ones.

  • ALWCANCEL - Allow cancel (*NO and *YES) - *YES is preferred and the default is *NO.
  • RBDACCPTH - Rebuild Access paths (Default is *YES)
  • KEYFILE - Key file (Default is *NONE)
